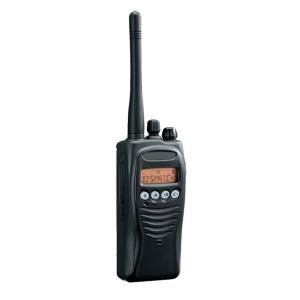

MÁY BỘ ĐÀM KENWOOD TK3217



Bộ đàm cầm tay Kenwood 128 kênh TK-3217
1. Frequency Range: 440-480MHz
2. Ourpur Power: 4W
3. Advanced Industrial Design
4. 128 Channels
5. Advanced Display
6. Enhanced Kenwood Audio
7. MIL-STD Driven Rain & IP54/55
8. Voice Inversion Scrambler
9. VOX Ready
10. QT/DQT/DTMF Signalling
11. Scan
12. FleetSync®
13. Key Lock
14. Tri-Color LED (Red, Orange, Green)
15. Power On Text Message
16. 6 Programmable Function Keys
17. Channel & Zone Scan Delete/Add
18. Operator Selectable Tone
19. Embedded Message
20. Adjustable Microphone Gain
21. Programming Data Password
22. Wireless Cloning
23. PC Programming & Tuning







TK-2217

TK-3217

GENERAL

Frequency Range

136-174 MHz

440-480 MHz

Number of Channels
Zone/Channel


Max. 128 per Radio / Max. 128 per Zone

Channel Spacing
Wide/Narrow


25, 30 kHz/12.5, 15 kHz


25 kHz/12.5 kHz

Battery Voltage

7.5 V DC ± 20 %

Battery Life (5-5-90 duty cycle, during hi-power, battery saver off)
with KNB-29N (1500mAh)


Approx. 10 hours

Operating Temperature Range*

-30º C ~ +60º C

Frequency Stability

±2.5ppm (-30ºC ~ +60ºC)

Antenna Impedance

50 Ω

Channel Frequency Spread

38 MHz

40 MHz

Dimensions (W x H x D),
Projections not Included
Radio Only
with KNB-29N



54 x 122 x 30.1 mm
54 x 122 x 42 mm

Weight (net)
Radio Only
with KNB-29N


180 g
380 g

RECEIVER (Measurements made per TIA/EIA-603)

Sensitivity (12 dB SINAD)
Wide
Narrow


0.25 μV
0.28 μV

Selectivity
Wide
Narrow


70 dB
60 dB

Intermodulation distortion
Wide
Narrow


65 dB
60 dB

Spurious Response

65 dB

60 dB

Audio Output (8 Ω impedance)

500 mW with less than 10% distortion

TRANSMITTER (Measurements made per TIA/EIA-603)

RF Power Output
High
Low


5 W
1 W


4 W
1 W

Spurious Response

65 dB

Type of Emission
Wide
Narrow


16KØ F3E
11KØ F3E

FM Hum & Noise
Wide
Narrow


45 dB
40 dB

Audio Distortion

Less than 5%
